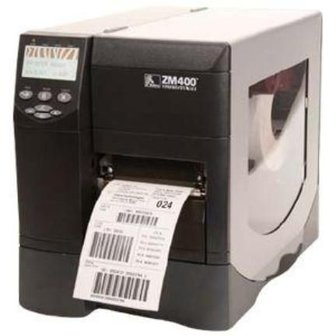

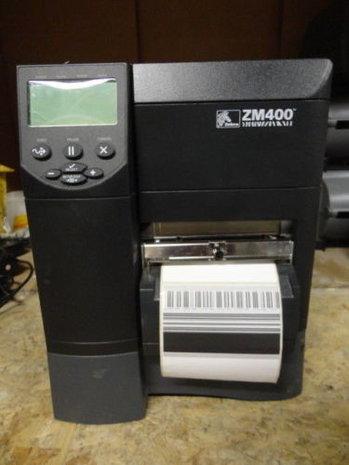

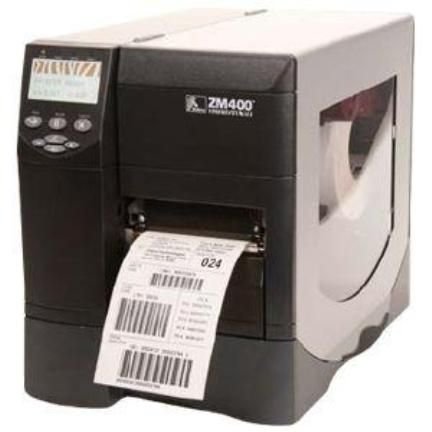

Zebra ZM400 Barcode Label Printer met Auto Cutter
Professionele Thermische Printer:
Resolutie: 203Dpi
Toepassing: Barcodes - Labels - Sticker
Conditie: Occasion
Aansluiting: USB / Parallel / Serieel / RJ-45 Netwerk
Maximale Media Breedte: 10,4cm
Direct Thermisch en Thermisch Transfer
Inclusief geinstalleerd Label Cutter
Inclusief:
* Windows Driver
* Zebra Label Design Software
* USB Printer Kabel
Zebra ZM400 Thermal-Transfer Label Printer Specifications
Standard Features
• Thermal transfer and direct thermal operating modes (can only use one mode at a time)
• Die-cast aluminum base, frame, and printhead mechanism
• Metal media cover with large clear window
• 16 MB DRAM, 8MB Flash
• RS-232C Serial Interface
• High Speed, IEEE 1284, Bi-Directional Parallel Interface
• USB 2.0
• Transmissive and reflective media sensors
• Multi-lingual backlit 240x128 pixel graphic display
• Color-coded operator cues
• RFID Ready
• 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
• 32-bit processor
• Auto-calibration
• Auto detectable (90V - 265V) power supply
• Element Energy Equalizer™ (E3®) (for print head energy control)
• Real Time Clock
• Unicode™ - Compliant
• Quick change printhead and platen
• Charcoal gray form design (for improved smudge resistance)
• ZPL® or ZPLII® (Zebra Programming Language®)
Printer Specifications
Resolution
300 dpi (12 dots/mm)
Memory
• 16 MB DRAM
• 8 MB Flash
• 64 MB Factory-Installed On-Board Flash (optional)
Print width
4.09" (104 mm)
Print length
• Length with 300 dpi: 73" (1,854mm)
Print speed
300 dpi - 8" (203 mm)/sec
Media sensors
Reflective
Transmissive
Media Characteristics
Maximum label and liner width
• 4.5" (114 mm) - tear & cutter
• 4.25" (108mm) - peel & rewind
Minimum label and liner width
1" (25 mm) - tear & cutter, peel & rewind
Maximum label and liner length
39" (991 mm)
Maximum roll diameter
8" (203 mm)
Core diameter
3" (76 mm)
Media thickness
.0023" (.058 mm) to .010" (0.25 mm)
Media types
Black mark, continuous, die-cut, fanfold, notch, perforated, tag stock
Ribbon Characteristics
Outside diameter
3.2" (81.3 mm)
Standard length
1476' (450 m) or 984' (300 m)
Ratio
3:1 media roll to ribbon ratio
Ribbon width
2" (51 mm) to 4.33" (110 mm)
Ribbon setup
Ribbon wound ink-side out or ribbon wound ink-side in (configurable one or the other, but not both)
ID Core
1.0" (25.4 mm)
Operating Characteristics
Operating temperature
TT: Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
20-85% non-condensing
Storage humidity
5/85% non-condensing
Electrical
Universal auto-detectable (PFC-compliant) power supply 90-265 VAC
Agency approvals
• IEC 60950-1 EN 55022 Class B
• EN 55024
• EN 61000-3-2
• EN 61000-3-3
Physical Characteristics
